JINSU

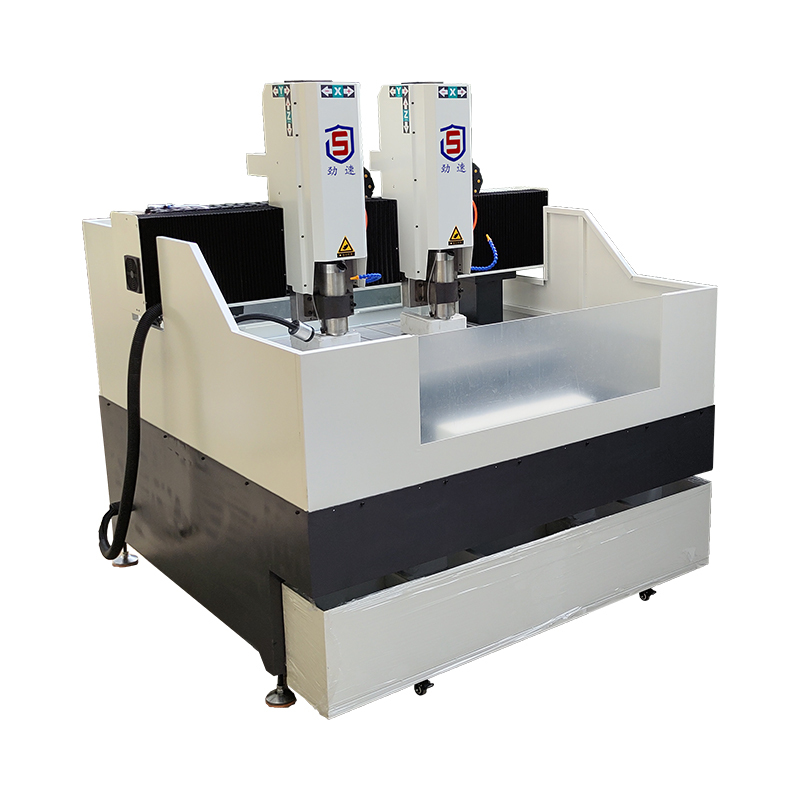

JS-1080 JINSU double head 3 axis cnc router milling/cutting/engraving machine
Item no. | JS-1080B |
Machine structure | Square steel |
Spindle | 3.2kw ,24000r/min |
Applicable tools | 3.175/4/6/8/10/12.7/14/16mm |
Voltage | 380v |
Frequency | 50hz |
Format | HPLG3D G-code |
Repeatability | 0.01mm |
Maximum idle speed | 10000mm/min |
X/Y/Z working area | 1000*800*360mm |
Machine size | 1780*1700*2150mm |
Weight | 2000kg |
Semi-enclosed structure design can effectively block the splash of coolant and debris, providing users with a cleaner and more comfortable working environment;
High-power inverter water-cooled spindle, low noise, can assure long time lot processing;
X/Y/Z axis use imported ball screw,the slider preloaded configuration,guarantee slider no clearance and machining accuracy has assure;
Has the breakpoint or power off continue engraving function, have back to basics to automatic correction function, effective guarantee processing precision when working for a long time;
Automatically protect power source.
